Airtightness and vapour control coating

BLOWERPROOF® LIQUID - spray or roll applied

blowerproof

NSAI certified:

  • for the permanent airtightness and vapour control of buildings/building elements by brush, roll or spray applying this product on building connections or walls depending on specifications and design.
  • to resist the ingress of radon into the building.
  • Suitable substrates include concrete, masonry, bricks, blocks, plaster/render, engineered wooden boards, OSB wood, multiply timber, plasterboards, fibre cement boards, calcium silicate boards, tapes, membranes,
    aluminium, spray foam insulation, insulation boards (PUR, PIR, polystyrene, Rockwool®), steel and PVC.


Realisations in Ireland:

- UCD Nova Dublin (PURCELL)

- Portrane Hospital

- Nursing Homes (cork and wexford)

- ...


Contact for productinformation, quote or installation service trough approved partners:

Phone. 0404 61901 - Mobile. 0876590000 - feargal@blowerproof.ie

Productsheet (PDF)

Typical building systems with Blowerproof®

team

BLOWERPROOF® products have been assessed by NSAI for use in the following applications:


  • Applied to the external side of the internal wall (prior to the installation of insulation panels/ façade system) to act as an airtightness and vapour control layer.
  • Applied on the internal side of the Internal wall, to act as an airtightness and vapour control layer, where the insulation is applied to the outer side of that wall i.e. when the cavity is filled with either insulation beads, rigid boards, etc (Cavity wall).
  • Applied on the internal side of the Internal wall, to act as an airtightness and vapour control layer, where the insulation is applied to the outer side of that wall (Cavity wall), and whereby the internal side is finished with an insulation board.
  • Applied on the internal side of the Internal wall, whereby BLOWERPROOF® is applied to the insulation or the concrete block wall (on the warm side of the insulation), to act as an airtightness and vapour control layer.
  • Applied on floor to wall connections, wall to roof connections and window frame to wall connections, to be finished with plaster (airtight), at required thickness to achieve airtightness.
  • Applied around penetrations and abutments e.g. wires and pipes.
  • Applied direct over polyurethane spray foam or rigid insulation boards where vapour control is required.
  • Applied to floors or walls as part of a radon protection system.
  • Applied to plaster board to provide an airtight or vapour control function.


(source: NSAI certification 23/0437)


Contact for productinformation, quote or installation service trough approved partners:

Phone. 0404 61901 - Mobile. 0876590000 - feargal@blowerproof.ie

Autocad designs free available

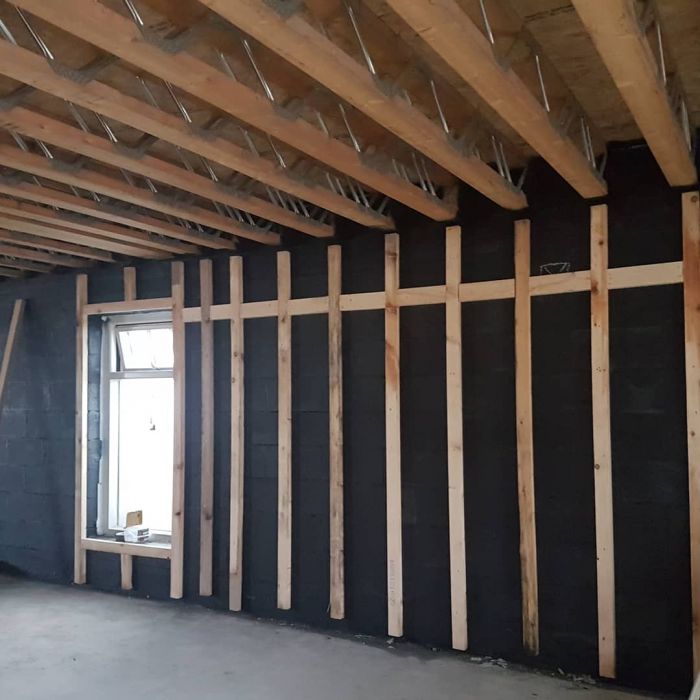

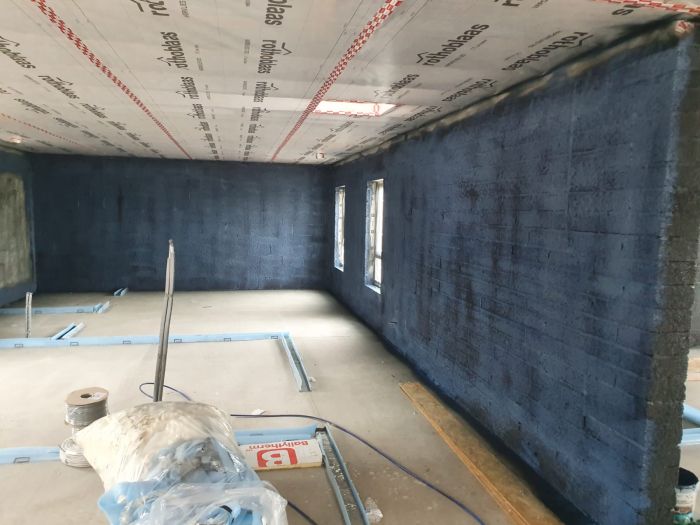

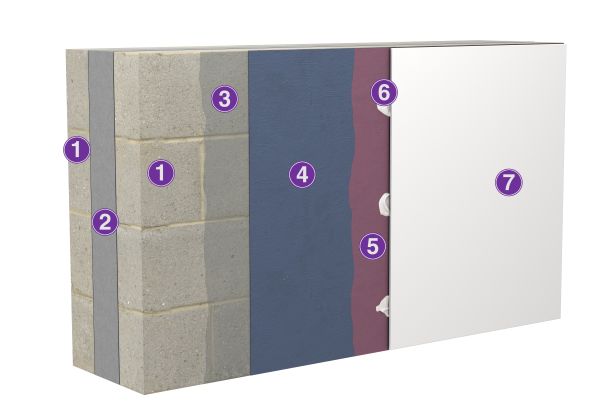

BLOWERPROOF® applied on the internal side of the internal wall

thumb

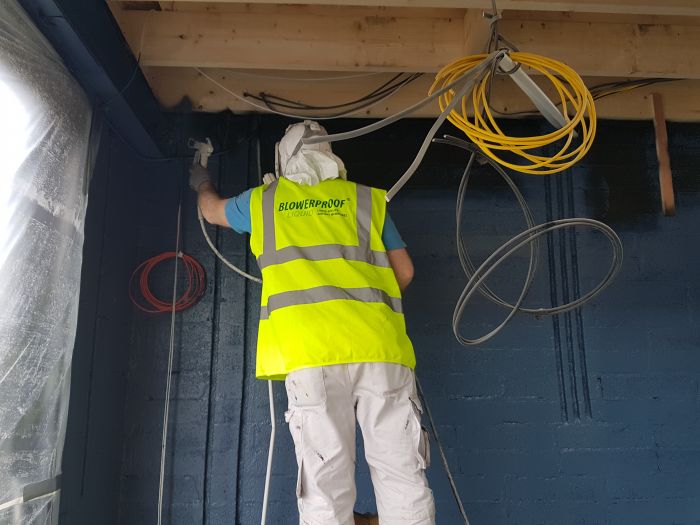

BLOWERPROOF® LIQUID is spray and/or roll applied on the inside of brick walls taking into consideration the general guidelines for applying this product. Multiple passes may be required to achieve the required minimum wet thickness.


Typical building systems with BLOWERPROOF® applied on walls:

  • Applied on the internal side of the Internal wall, to act as an airtightness and vapour control layer, where the insulation is applied to the outer side of that wall i.e. when the cavity is filled with either insulation beads, rigid boards, etc (Cavity wall). After curing, different types of finishes are possible such as plasterboards be fixed onto the BLOWERPROOF® layer by standard dot & dab techniques using PRIMER 52.
  • Applied on the internal side of the Internal wall, to act as an airtightness and vapour control layer, where the insulation is applied to the outer side of that wall (Cavity wall), and whereby the internal side is finished with an insulation board.

(source: NSAI certification 23/0437)


Contact for productinformation, quote or installation service trough approved partners:

Phone. 0404 61901 - Mobile. 0876590000 - feargal@blowerproof.ie

Autocad designs free available

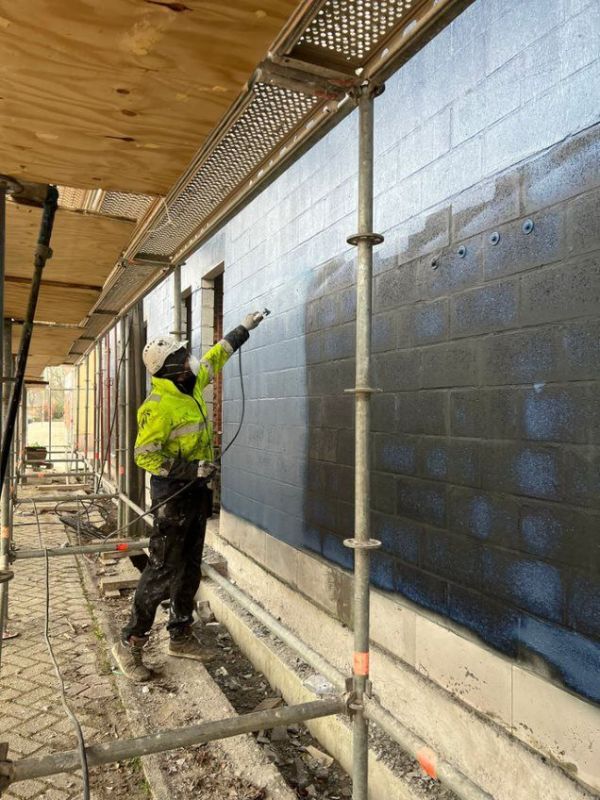

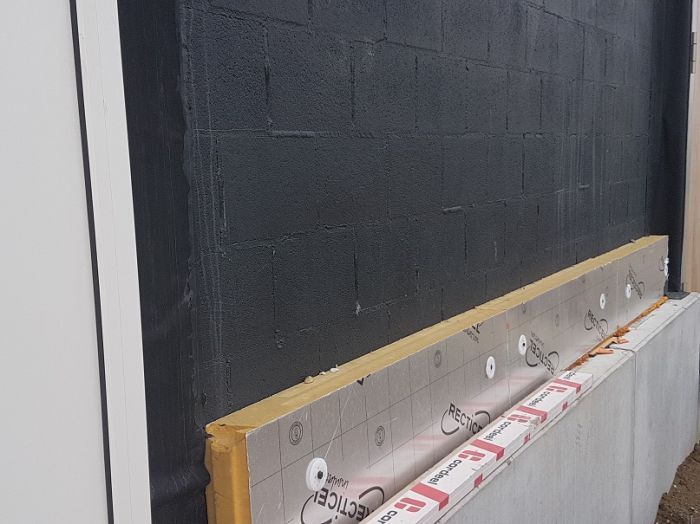

BLOWERPROOF® applied on external side of the internal wall

BLOWERPROOF® LIQUID is spray and/or roll applied on the inside of brick walls taking into consideration the general guidelines for applying this product. Multiple passes may be required to achieve the required minimum wet thickness.


Typical building systems with BLOWERPROOF® applied on walls:

  • Applied to the external side of the internal wall (prior to the installation of insulation panels/ façade system) to act as an airtightness and vapour control layer.

(source: NSAI certification 23/0437)


Example project


Contact for productinformation, quote or installation service trough approved partners:

Phone. 0404 61901 - Mobile. 0876590000 - feargal@blowerproof.ie

Autocad designs free available
thumb

Blowerproof®  applied on insulation as vapour control and airtightness

blowerproof
  • Fill gaps greater than 2mm with non-shrink polyurethane foam. Do the same for joints, pipes, cables, ducting, joists and all other penetrations.
  • Apply BLOWERPROOF LIQUID in two coats ensuring that the first coat is fully dry before applying the second coat.


BLOWERPROOF® has been assessed for used on these insluation materials: PUR, PIR, polystyrene, Rockwool®

(source: NSAI certification 23/0437)


Example project


Contact for productinformation, quote or installation service trough approved partners:

Phone. 0404 61901 - Mobile. 0876590000 - feargal@blowerproof.ie

Autocad designs free available

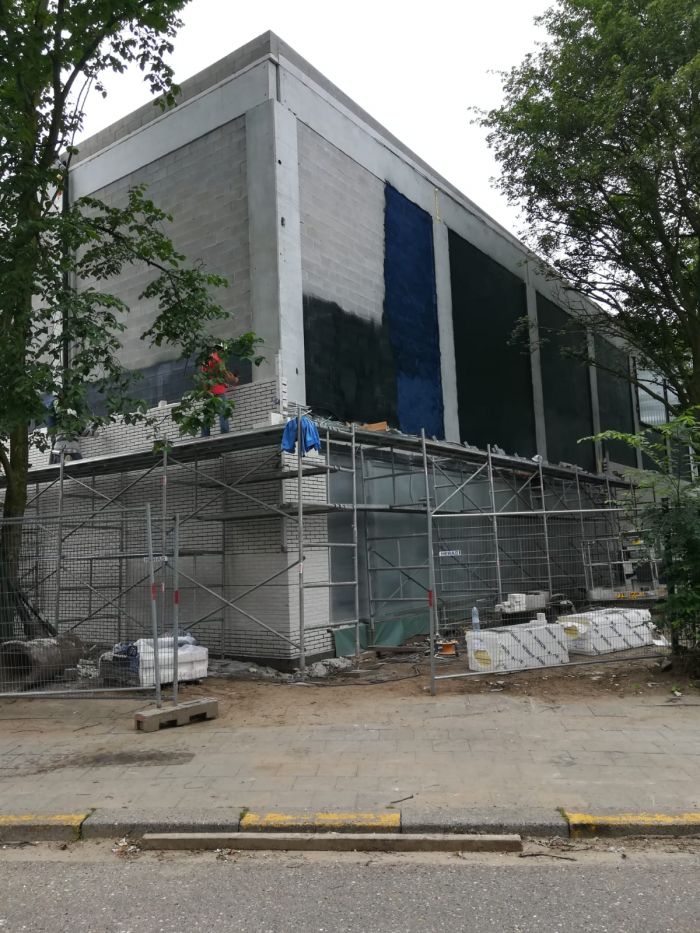

Project references accross Europe since 2012

Dublin (Ireland) - New psychiatric hospital - 2019

UCD Nova Dublin (PURCELL)

Portrane Hospital - Ireland

Duxford (United Kingdom) - Imperial War museum - Passive construction, to house national military archives - 2018 - click for link

Beringen (Belgium) - Largest belgian passive house school - 2016 - click for link

Dublin (Ireland) - UCD - Purcell Construction - 2016

Pamplona (Spain)- Passive House appartment building (n50<0,4) - V Arquitectos - 2016

Antwerpen (Belgium) - Residential buildings - Kattendijkdok - 2015

Vilnius (Lithouania) - Passive House residential building - Aeronamai project (2019) - click for link

Brussels (Belgium) - renovation head offices federal police - 2013 (VIDEO)

...
